TENNAX Combi PA-Systeme self-powered

Compact, powerful, excellent sound quality, high sound pressure, easy to set up, fast cabling, flexible, robust and roadworthy, discreet and elegant, long range, very good speech intelligibility, easy to transport, reliable, best price/performance ratio, ... these are the words TENNAX users will use to describe their self-powered Combi PAs.

The TENNAX self-powered Ventus basses form the powerful foundation of the Combi self-powered PAs. These subwoofers are characterised by a deep-reaching and at the same time extremely precise and punchy signal reproduction.

The 3-channel Class-D power amplifier module of the latest generation has a high-end sound quality with a very high efficiency.

A total of 4.600 W of amplifier power is available for dynamic playing with plenty of power reserve. Power amplifier channel 1 has 2.600 W of power (270 V/ 50 A peak) for the internal bass chassis and can also supply a second slave subwoofer connected in parallel. The power of the two stereo power amplifier channels 2 and 3 is 750 W/ 8 Ω, 1.000 W/ 4 Ω, 750 W/ 2 Ω, respectively. Due to the 2-ohm strength, many satellite speakers can be driven in parallel on the amplifier channels.

Each Combi-PA is perfectly matched to ensure the best possible performance and sound quality. With one button 5 different DSP presets can be selected manually.

A free remote software gives the user access to additional presets and DSP features. Individual sound settings and room corrections can be stored in the internal DSP. A total of 80 presets and extensive filter functions including delay are available. If several active systems are to be combined and controlled, they can work together in a network and daisy-chains can be connected via Ethernet cable. For this purpose, the DSP has two network sockets with built-in switch. With the TENNAX self-powered systems, the technical professional has extensive possibilities. The normal user does not have to worry about the technology, just connect, start and have fun.

All Combi PA's are linear tuned for a natural and tonally balanced sound. The TENNAX systems sound round and pleasant even with a quiet background sound. Speeches and announcements can be heard clearly and transparently even at a distance thanks to the special horn design of the Flexi-Tops and the physical properties of the Axon column. At the highest levels the sound remains powerful, crystal clear and unobtrusively relaxed.

Well thought-out and technically well developed accessories guarantee easy handling, save assembly time and facilitate transport. To ensure that the equipment looks good for a long time and retains its value, there are robust speaker covers and bags for protection.

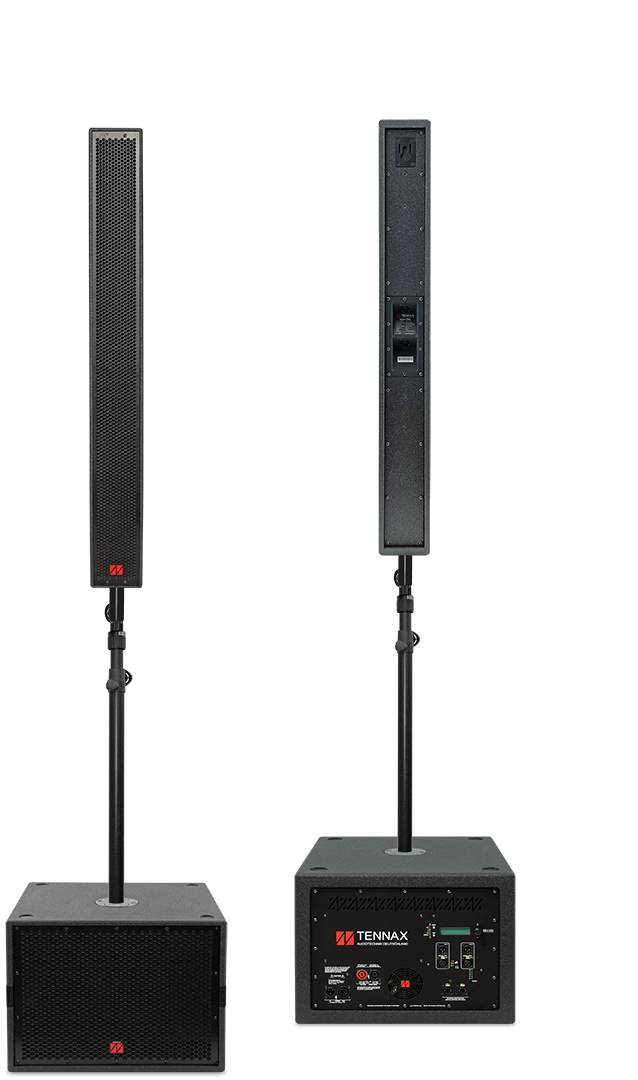

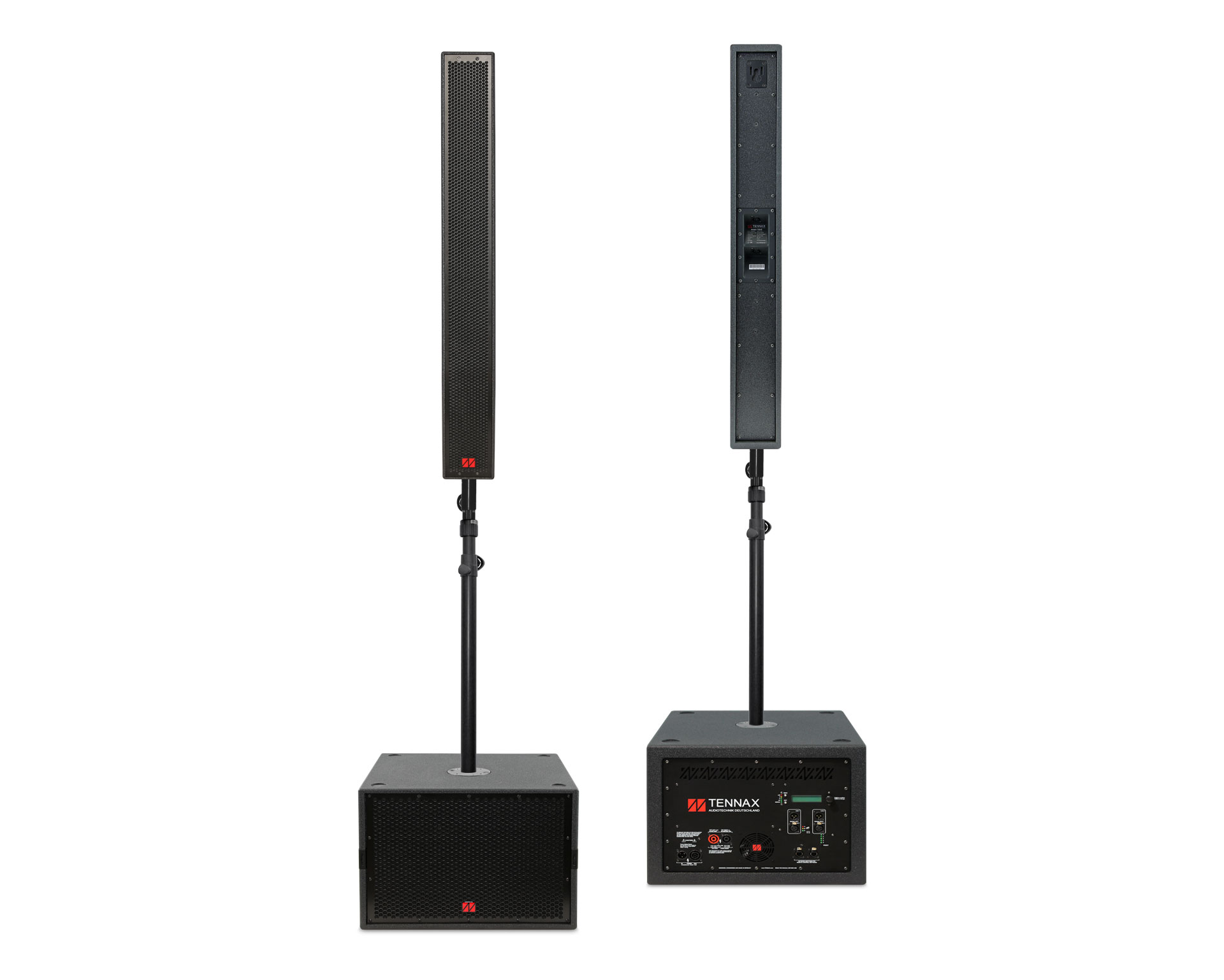

Combi-12sp-Axon

Combi-12sp-Axon

  • 2 x Axon-12x3
  • 1 x Ventus-12
  • 1 x Ventus-12sp

Data Sheet

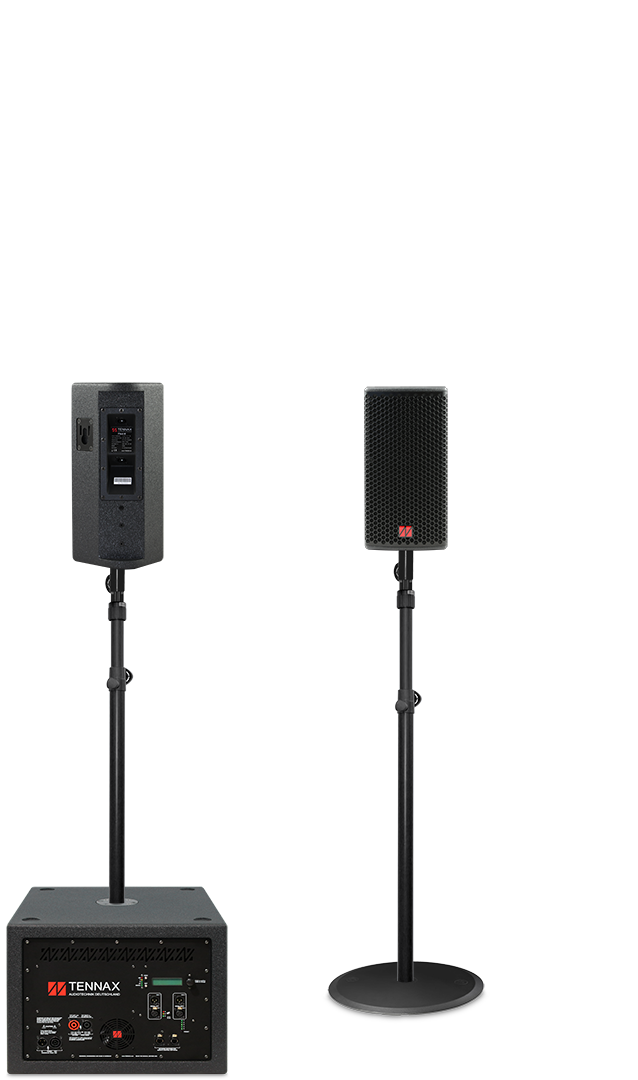

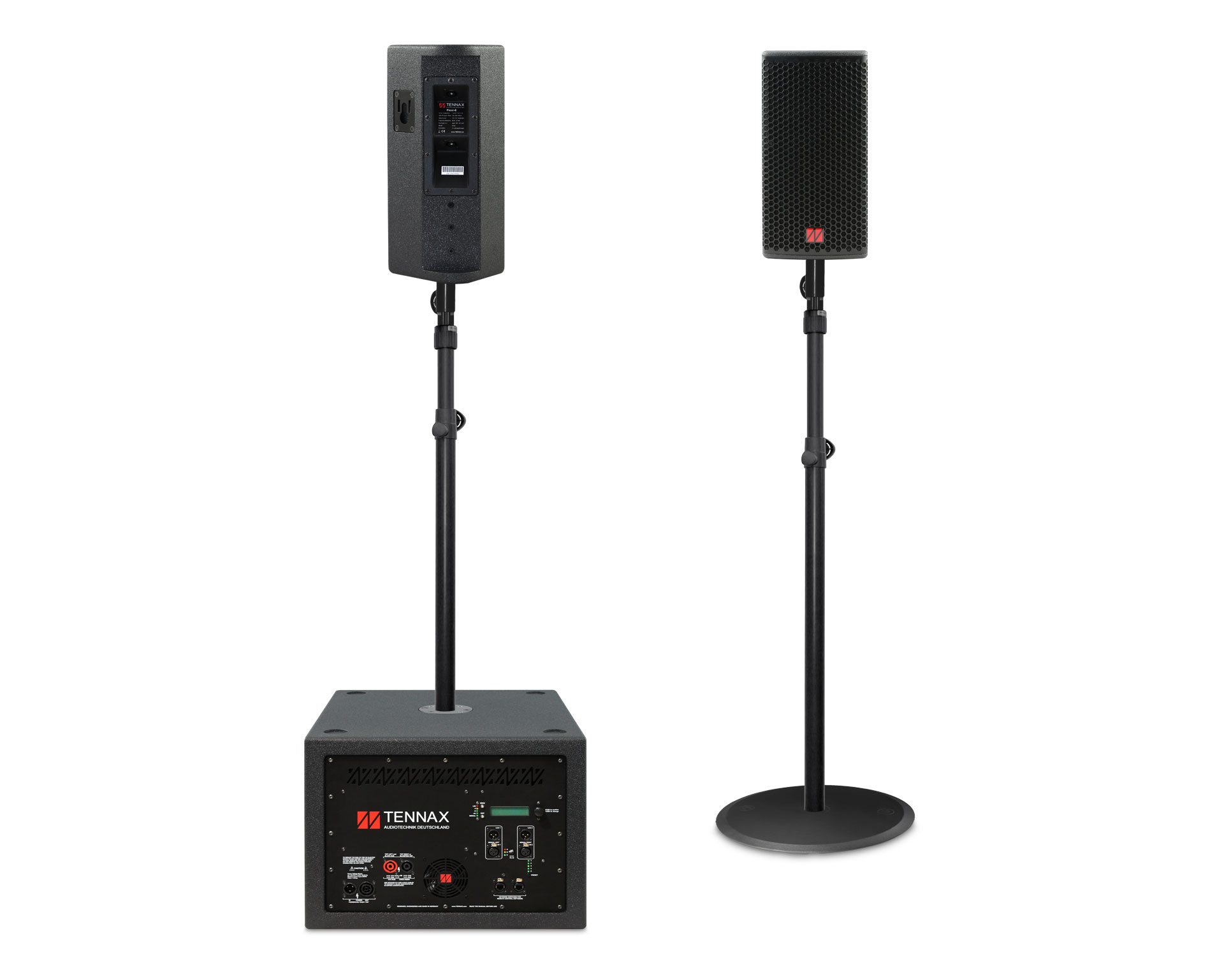

Combi-12sp-Flexi small

Combi-12sp-Flexi small

  • 2 x Flexi-6
  • 1 x Ventus-12sp

Data Sheet

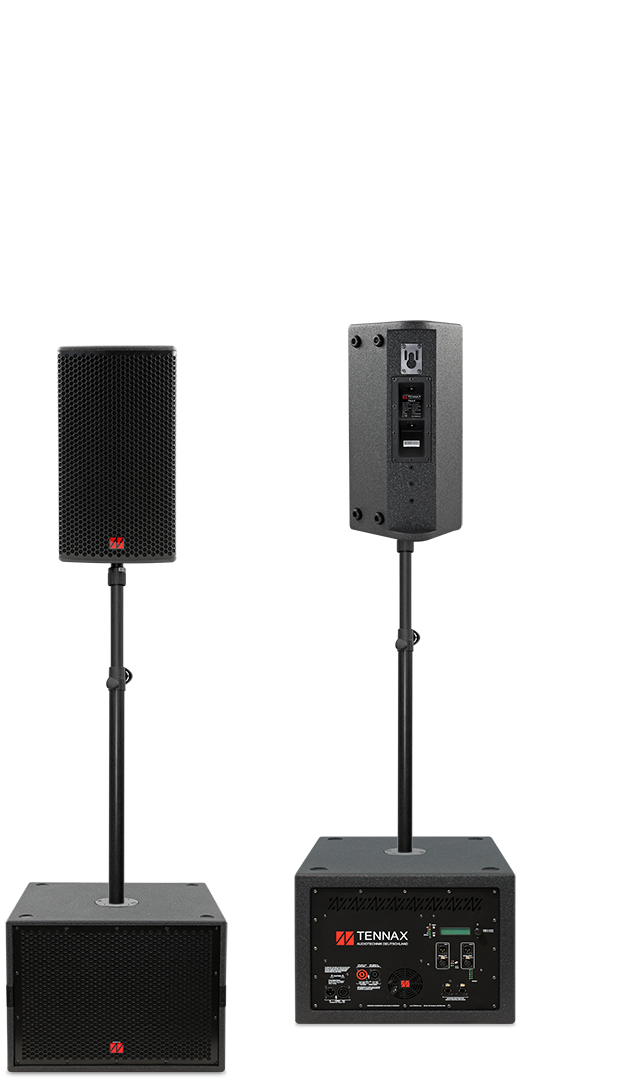

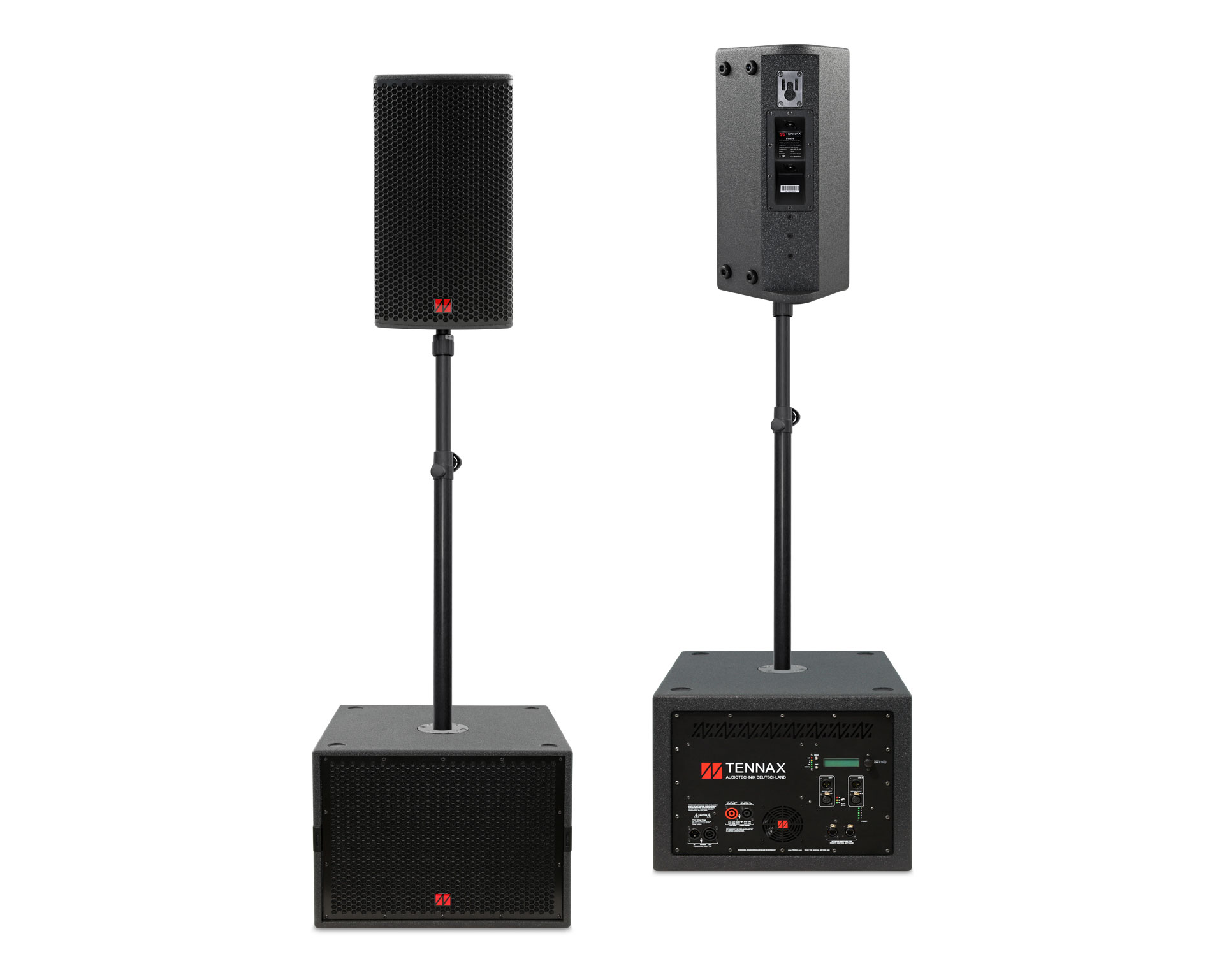

Combi-12sp-Flexi

Combi-12sp-Flexi

  • 2 x Flexi-8
  • 1 x Ventus-12
  • 1 x Ventus-12sp

Data Sheet

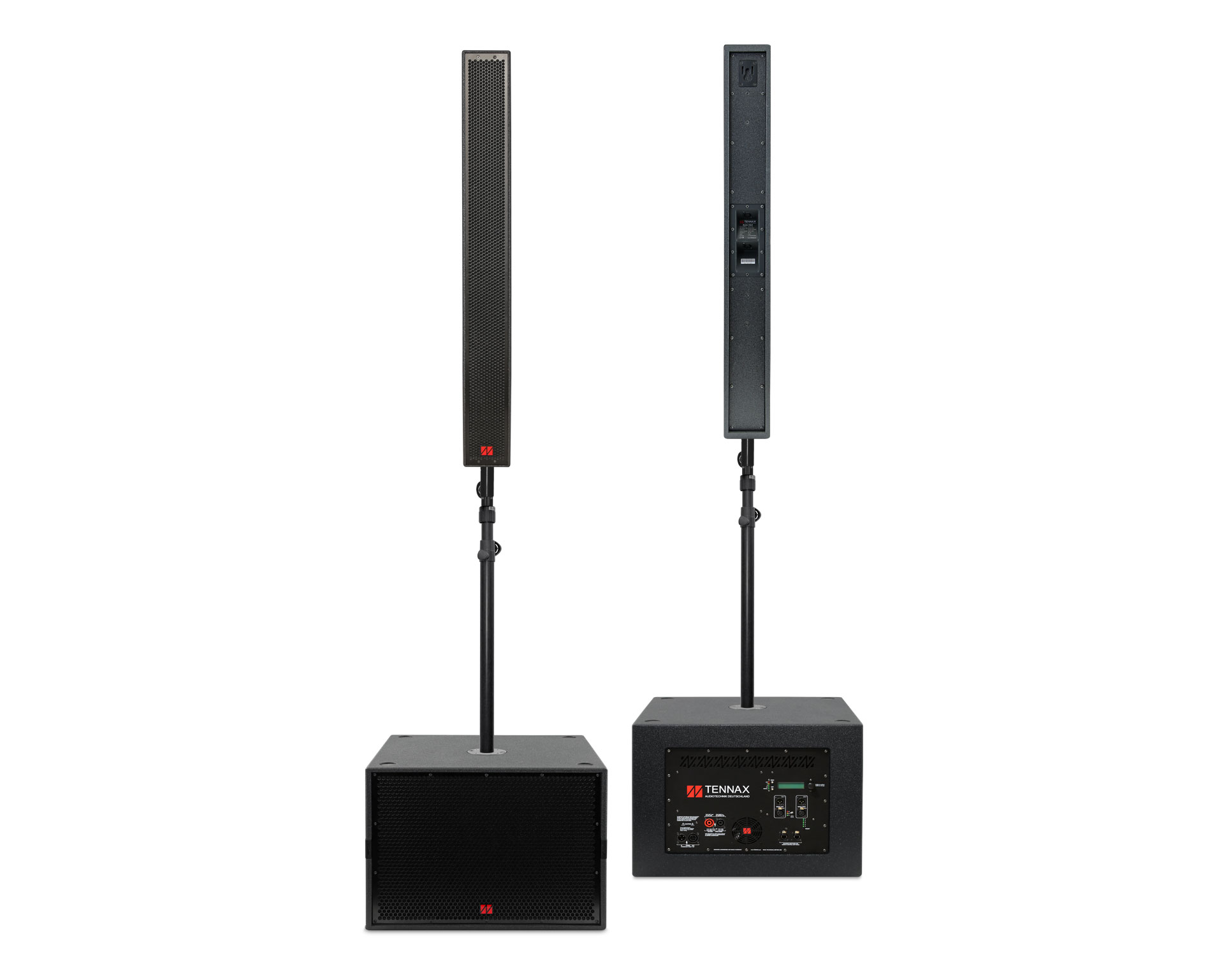

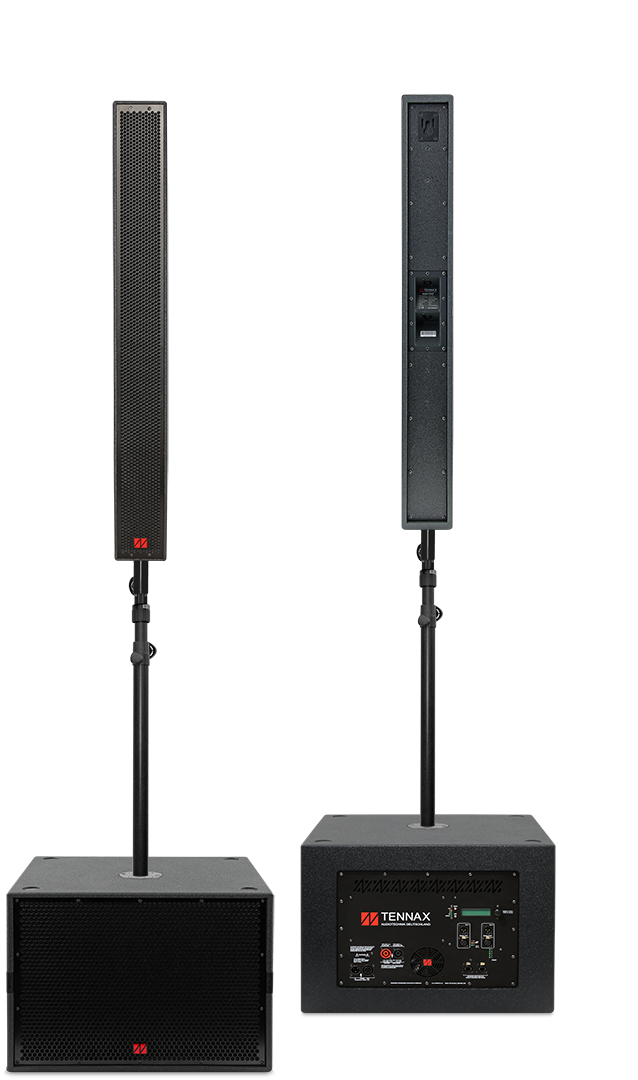

Combi-15sp-Axon

Combi-15sp-Axon

  • 2 x Axon-12x3
  • 1 x Ventus-15
  • 1 x Ventus-15sp

Data Sheet

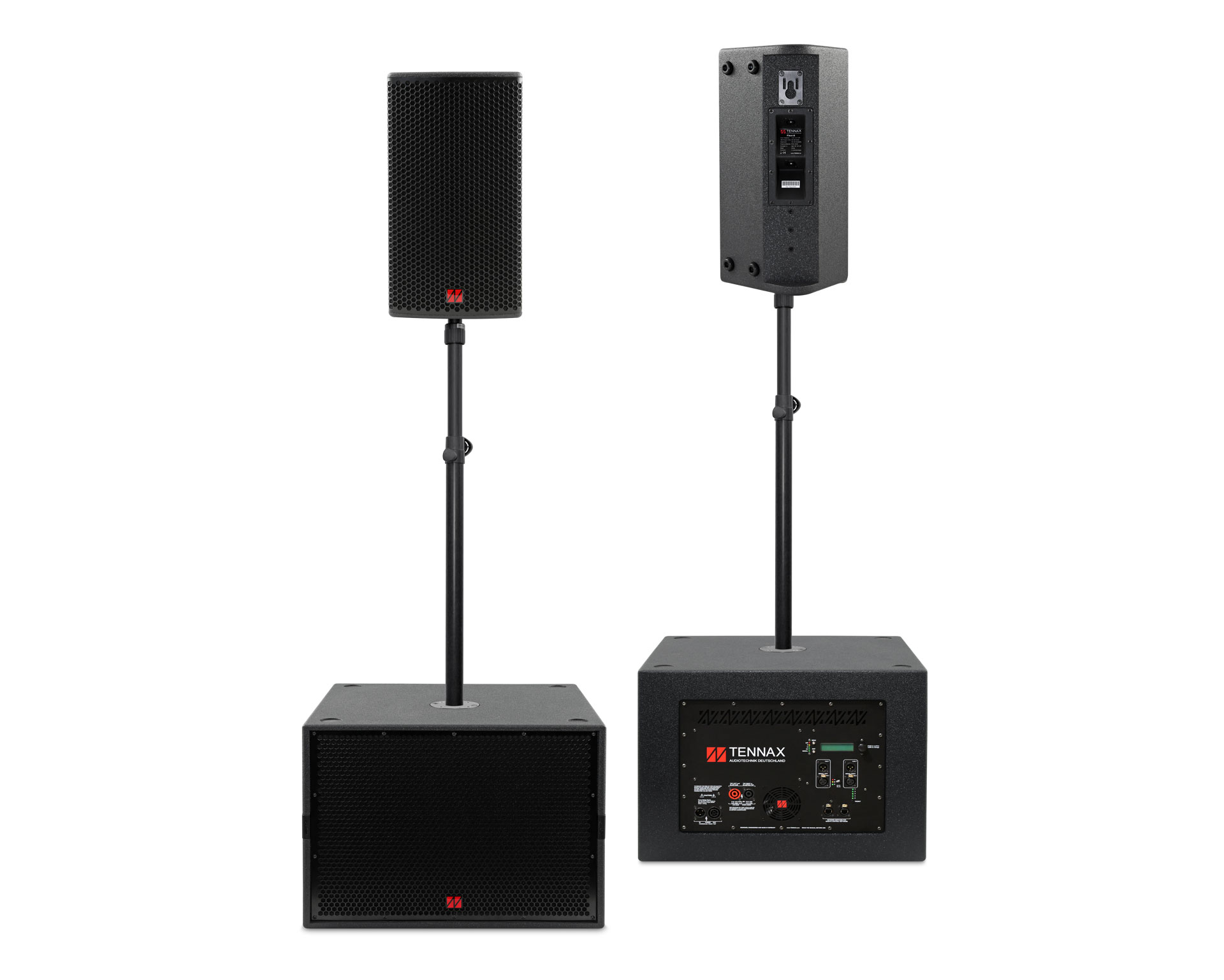

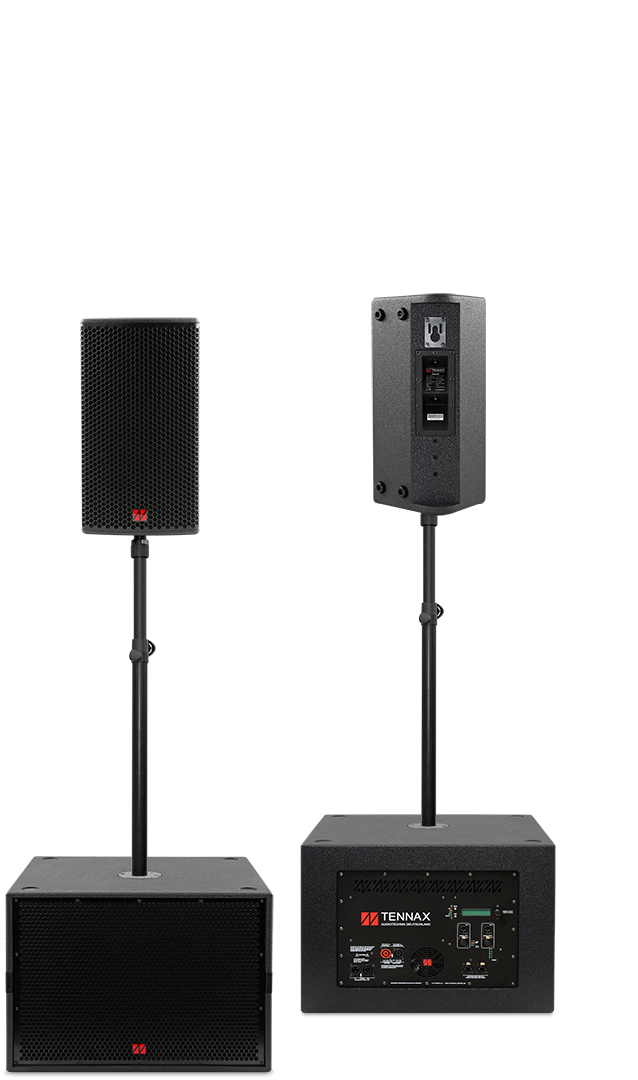

Combi-15sp-Flexi

Combi-15sp-Flexi

  • 2 x Flexi-8
  • 1 x Ventus-15
  • 1 x Ventus-15sp

Data Sheet

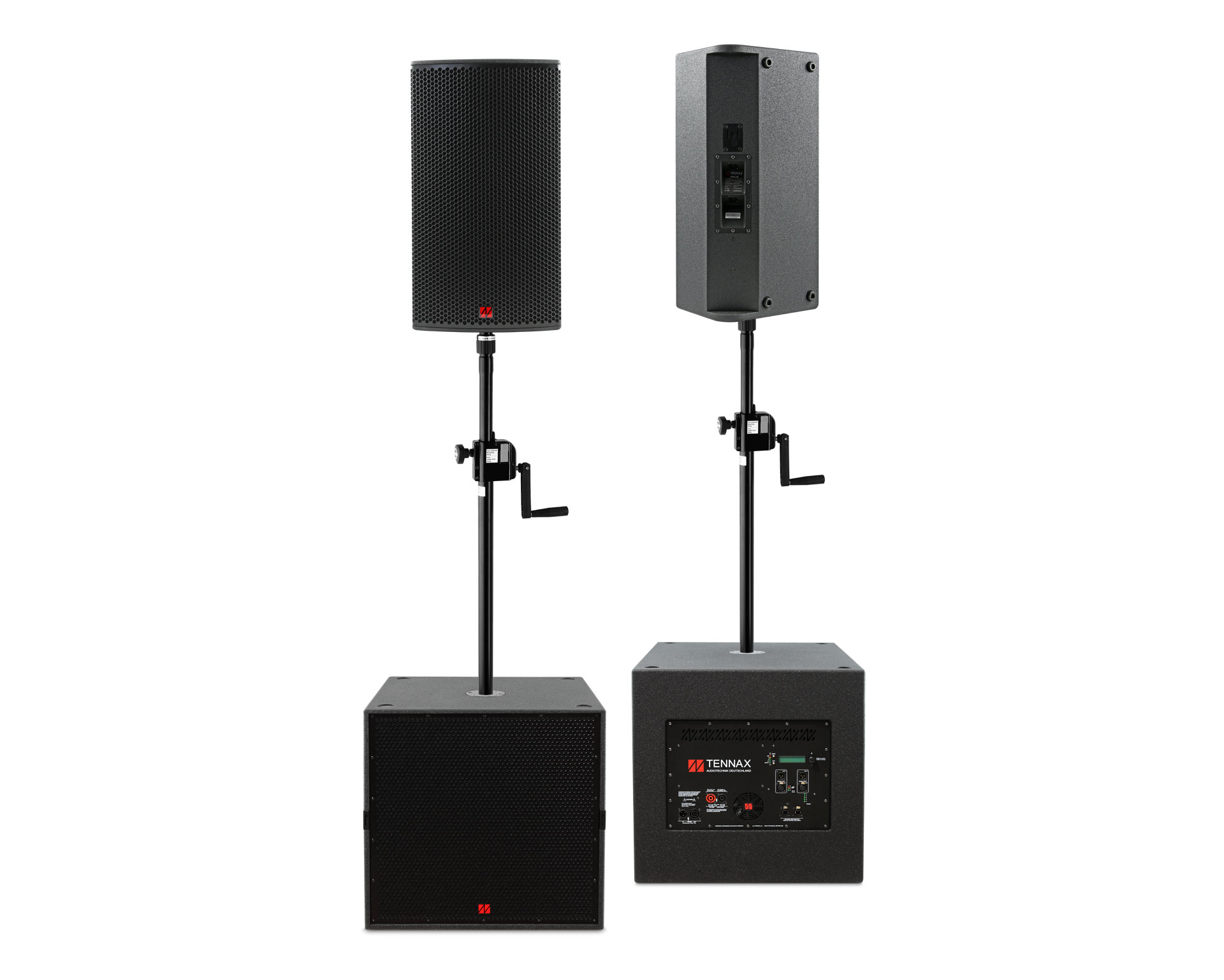

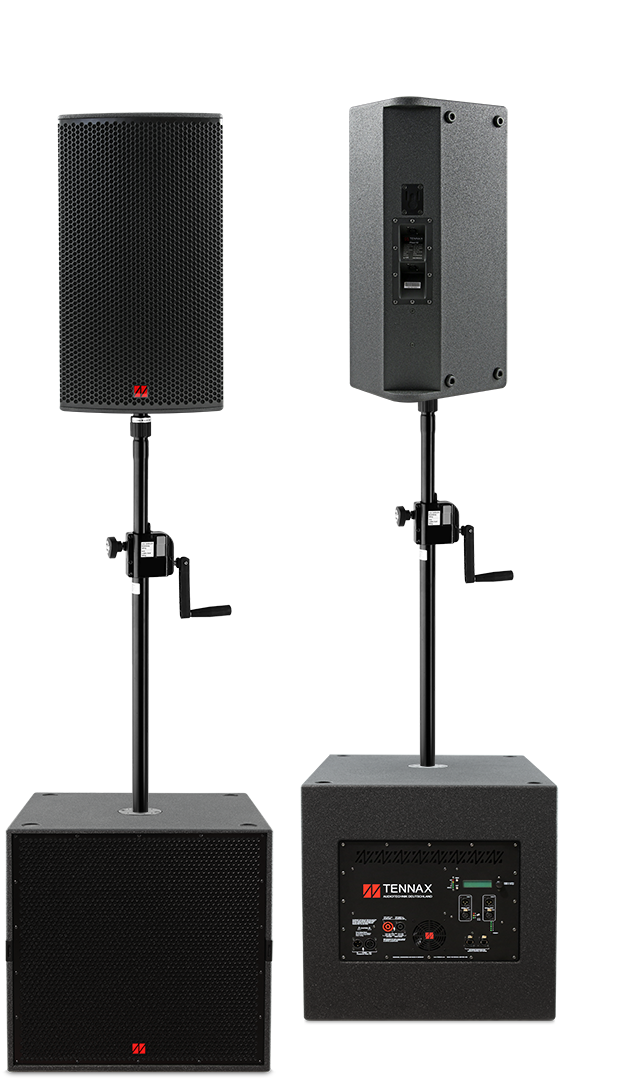

Combi-18sp-Flexi

Combi-18sp-Flexi

  • 2 x Flexi-12
  • 1 x Ventus-18
  • 1 x Ventus-18sp

Data Sheet

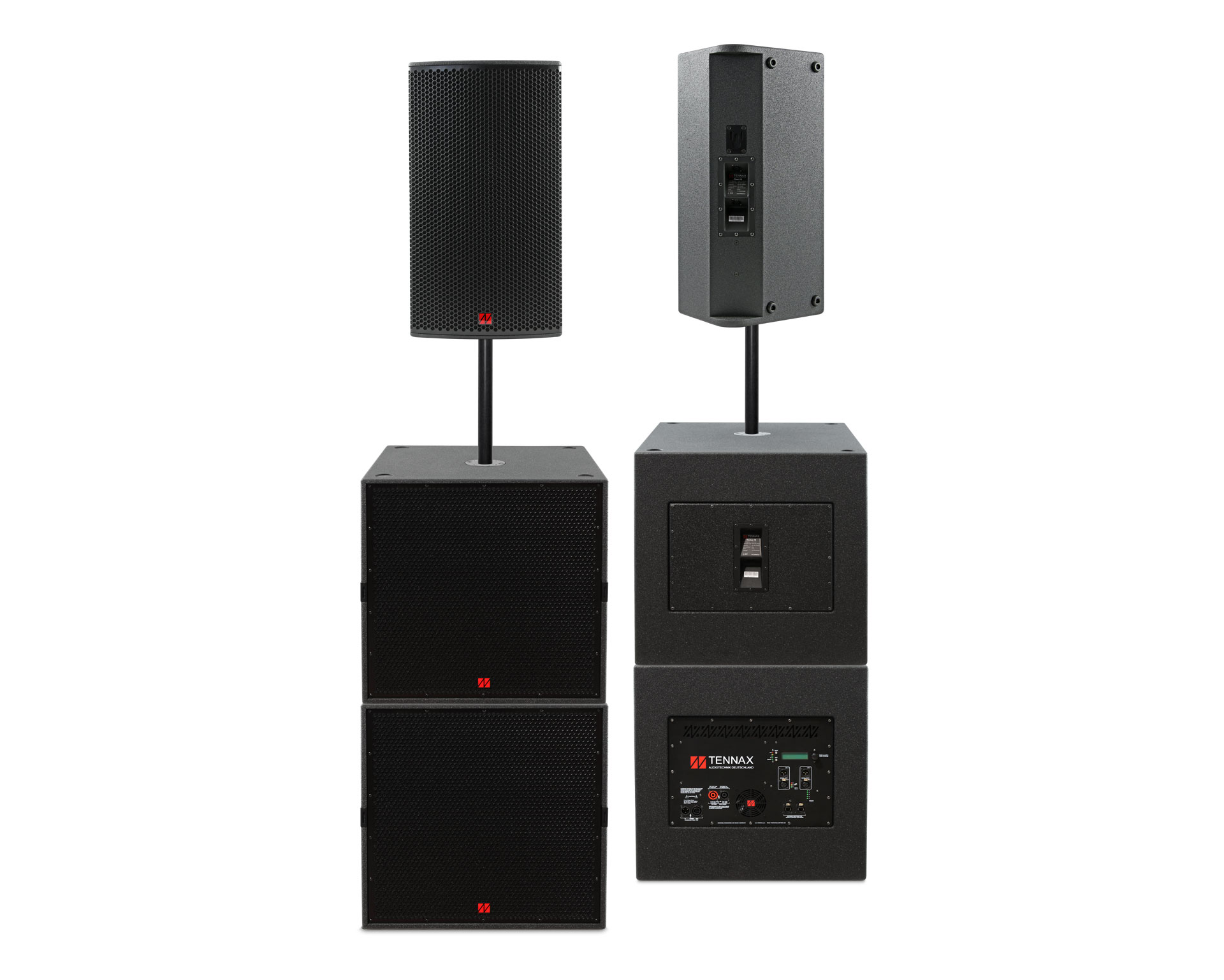

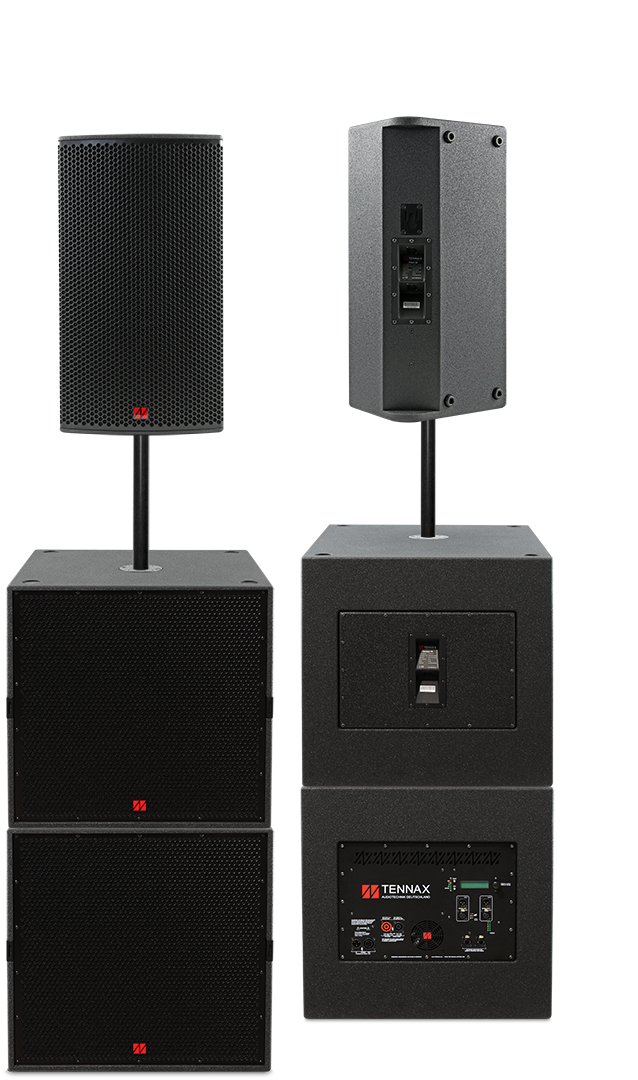

Combi-18-Flexi large

Combi-18-Flexi large

  • 2 x Flexi-12
  • 2 x Ventus-18
  • 2 x Ventus-18sp

Data Sheet

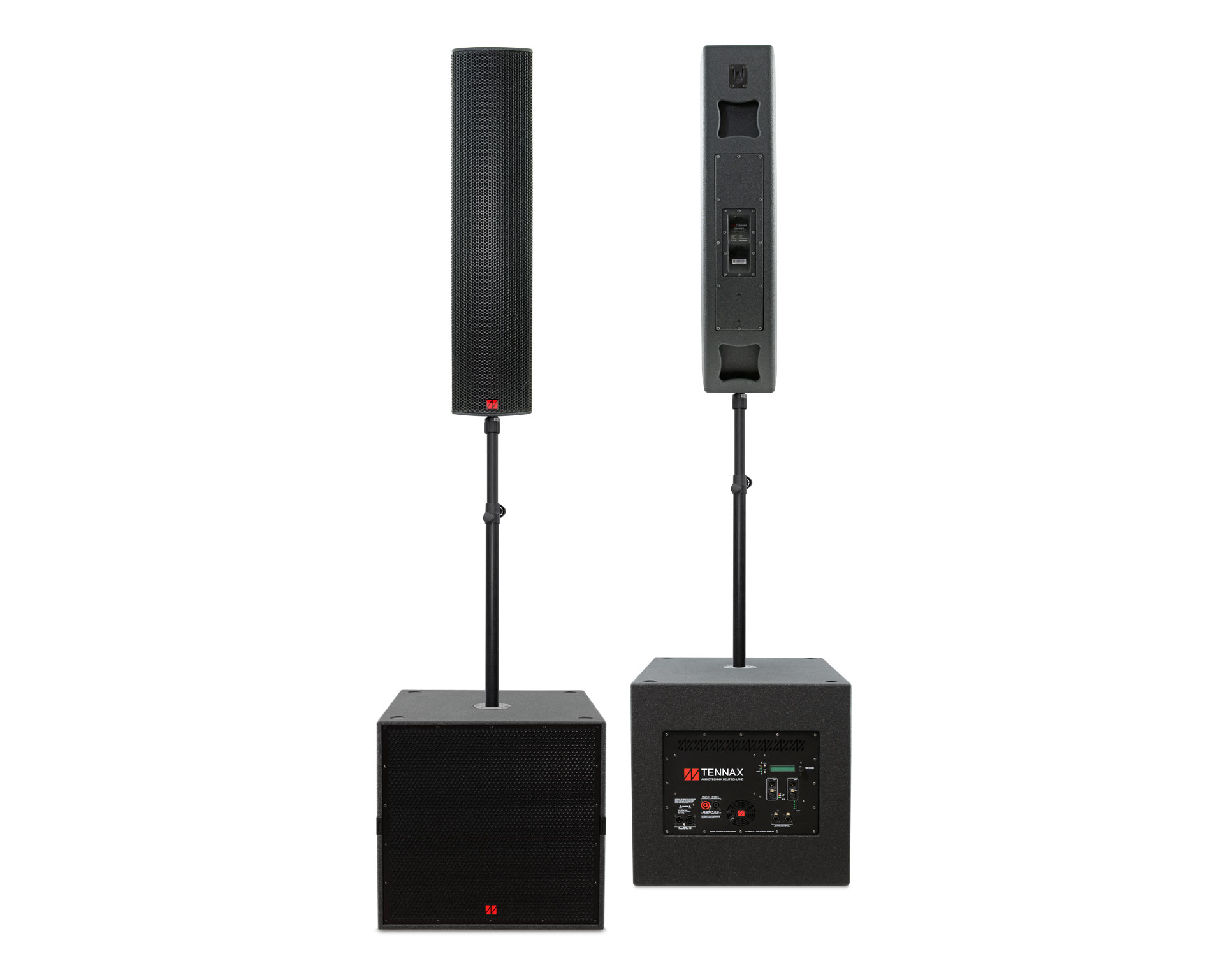

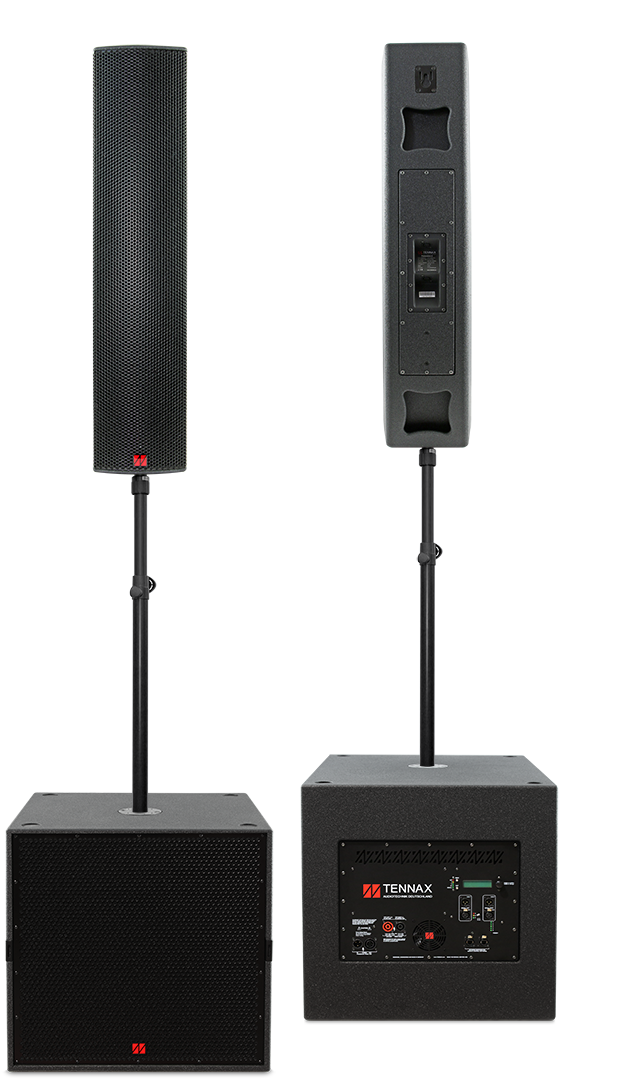

Combi-18sp-Powerstick

Combi-18sp-Powerstick

  • 2 x Powerstick-6
  • 1 x Ventus-18
  • 1 x Ventus-18sp

Data Sheet

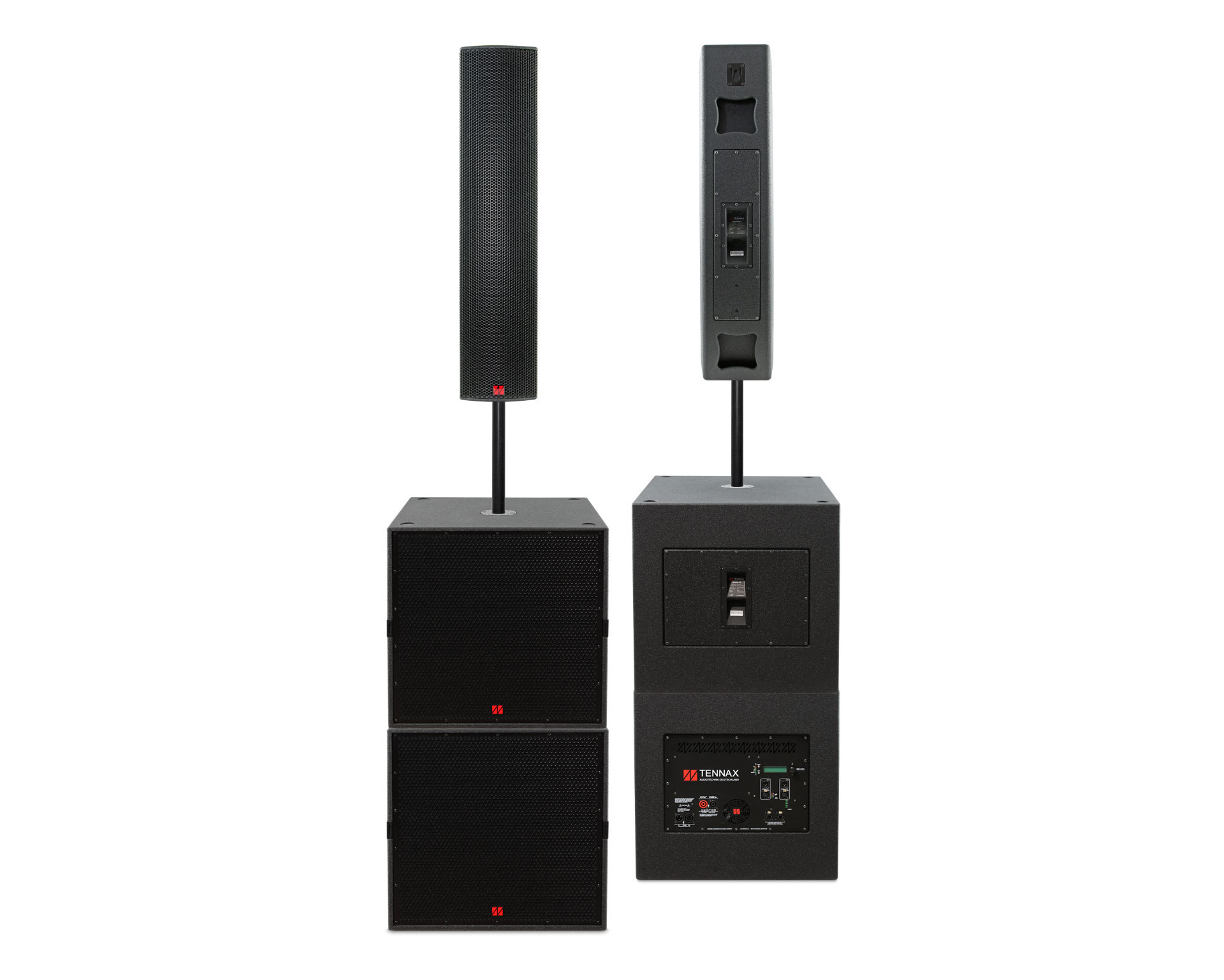

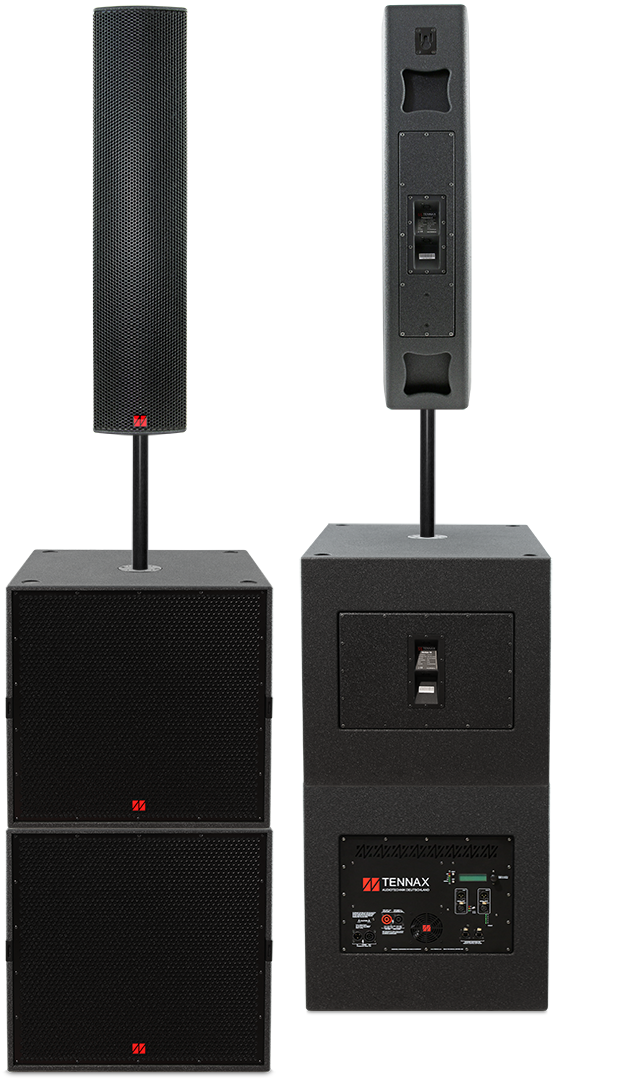

Combi-18sp-Powerstick large

Combi-18sp-Powerstick large

  • 2 x Powerstick-6
  • 2 x Ventus-18
  • 2 x Ventus-18sp

Data Sheet
